Product Overview

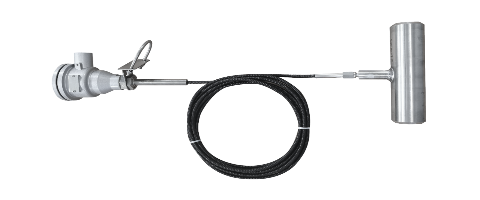

Direct temperature measurement of medium and high pressure small diameter pipelines in petroleum, chemical and other industries
• Insert direct temperature measurement than the surface temperature measurementaccuracy is higher,faster response.
• The pipeline does not need to expand the pipeline can achieve accurate temperaturemeasurement.
• Inserted the pipeline does not affect the normal flow of the medium.
• Thermometers can be replaced online.
• The use of double-layer leakproof structure.
| Graduation | Thermocouples or RTDs |
|---|---|
| Pipe diameterrange | DN15~DN150 |
| Maximum operating pressure | 60MPa |
| Thermal response time | τ0.5 < 3s (with thermometer) |
